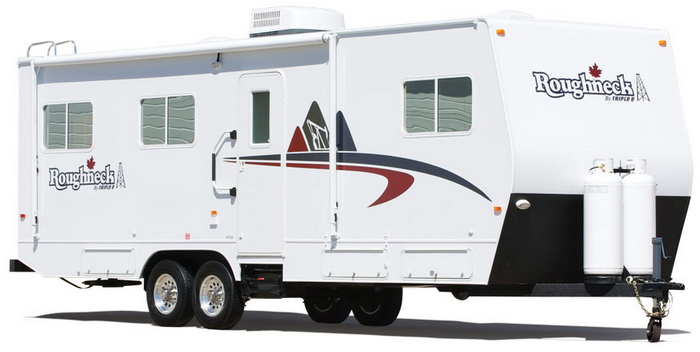

The Roughneck contains both living and working space and is built to survive the rigors of rough roads and sub-zero temperatures. In addition to a pair of big heaters, heavy insulation and a reinforced frame, the Roughneck offers such touches as solid maple cabinets, a fully-equipped kitchen, a pair of LCD television and a large shower.
GVWR – lbs. (kg) 12000 (5430)
UVW – lbs. (kg) 8934 (4043)
Hitch/Pin Weight – lbs. (kg) 1352 (612)
CCC – lbs. (kg) 3066 (1387)
Tire Size STP235/80R16D
Length – ft. (mm) 32’3″ (9830)
Width – ft. (mm) 8’0″ (2438)
Height Inc. A/C – ft. (mm) 11’5″ (3484)
Water Tank Cap. – Gal. (L) 110 (416)
Water Heater Cap. – Gal. (L) 10 (38)
Grey Waste Cap. – Gal. (L) 110 (416)
Solid Waste Cap. – Gal. (L) 55 (208)
Propane Cap. 100lbs. X 2
Furnace 40000 BTU X 2
*All Capacities in U.S. Gallons
13,000 lb Hitch Coupler
5000lb Front Hitch Jack
Automotive Undercoating
Chassis – Stacked High Strength Structural Tublar Steel
Shock Absorbers
Spare Steel Wheel & Radial Ply Tire
Stabilizer Jacks – Front & Rear
Enclosed Underbelly with Heated, Insulated Holding Tanks
Fiberglass Front & Rear Walls
Floor – 5/8″ T&G Fir Plywood Decking w/Fiberglass Insulation
Roof – 3/8″ Fir Plywood Roof Decking
Roof – Domed, One Piece EPDM Roof c/w Drip Rails and Runoff Spouts
Roof – Residential Style Vapour Barrier & Fiberglass Insulation
Sidewalls – Vacuum Bonded Sidewalls w/High Density EPS Foam Insulation & FRP Exterior
Baggage – Large Exterior Storage Boxes w/Flush Type Insulated Locking Doors
Diamond Plate Rear Power Cord Storage Box
Door – Radius Corners s/Diagonally Reinforced Screen Door s/Kick Panel
Exterior Ladder
Handle – Large Swing Out Exterior Assist Handle
Lighting – Exterior Patio Light w/Wall Switch
Lighting – Hitch Area & Sewer Termination Area with Interior Wall Switch
Receptacle – GFI Protected 120 Volt Duplex Patio Receptacle
Spray -on Rockguard on Front Wall & A-Frame
Polyurethane Foam Undercoating
Step – Rectractable Entry Step – 3 Step
Windows – Thermal Pane Radius Corner Windows w/Safety Glass
Blinds – Venetian Blinds in Living Area
Cabinet Doors – Solid Maple – Cherry Finished
Cabinets – Cherry Finish Construction w/Double Screwed Lumbercore Frames
Clock in Living Area
Coat Hook at Entrance Door
Detectors – Electronic Smoke, LP and CO Detectors
Drawers – Full Extension Ball Bearing Drawer Tracks
Fire Extinguisher – Dry Chemical
Flooring – Vinyl in Galley, Bath & Living Area, Carpet in Bedroom
Lighting – Ceiling Mounted LED Lights Throughout
Message Board at Entrance Door
Rechargeable Flashlight by the Entrance Door
Valance – Wrapped Window Treatments
Booth Dinette w/Easy Lift Table and Slide Out Drawers
Computer Workstation
Recliner – Euro Recliner(s) with Ottoman
Sofa Bed
Blinds – Venetian Window covering in Galley
Coffee Maker
Counter-top & Dinette Table – Laminate W/Solid Maple Radius Edge
Faucet – Brushed Nickel Galley Faucet with Pull out Sprayer
Knife Rack (Built in)
Light – LED Light in Galley
Microwave Oven
Range – Three Burner c/w High Output Burner w/ Oven – 21″
Range Hood c/w 12 Volt Light & Exhaust Fan
Receptacles – Wall Mount Receptacles at Galley
Refrigerator – Dometic LP/Electric 9 cu.Ft/ w/Temp Control w/Stainless Inserts
Sink – Nickel Look Large Acrylic Deep Bowl Sink w/Cutting Board Cover
Counter Top – Laminate with Laminate Edge & Acrylic Sink w/Single Lever Faucet
Medicine Cabinet – Deluxe Cherry Finished
Shower Stall – Fiberglass Enclosed With Shower Curtain
Skylight in Shower – Dual Pane
Toilet – Sealand Traveller Lite – China – Foot Flush w/Sprayer
Towel Holders on Bathroom Door
Bedspread – Decorative
Blinds – Roll-up Blinds in Bedroom
Large Under-Bed Storage Compartment
Mattress – Innerspring (60″x78″)
Pillows w/Pillow Shames
Entertainment Cabinet w/ AM/FM/DVD/CD/Turner Home Theatre
Satellite Dish / Cable TV Exterior Hookup
Telephone Jack
TV – 22″ LCD With Remote in Bedroom
TV – 26″ LCD TV with Remote
Air Conditioner – Ducted 13,500 BTU Roof w/Heat Strip
Fan – Non Reversible Create a Breeze in Living Area
Fan – Reversible Thermostatically Controlled Create A Breeze in Bedroom ILO
Manual Vent
Furnaces – Dual Forced Air D.S.I. c/w Thermostat (40,000 BTU ea) with In-Floor Ducting
Vent – 12 Volt Power Roof Exhaust in Lavatory
12V Battery Disconnect
Breaker Panel – 30 Amp – w/100Ft. Detachable Ultra-Flex Power Cord
Converter – Electronic c/w Battery Charger and 12V Fuse Panel (45 amp)
Generator Ready – LP
Lighting – Wall Switched Interior Lights
Pre-wired for Solar Panel
Awning – A&E 8500 Awning – 18′
Black Tank Flush w/ Atmospheric Break
By Pass Valve – Water Heater
Monitor Panel – Grey, Black, Fresh Water and Battery Charge
Pick Up Kit – Antifreeze Pick Up Kit
Tank LP – Dual 100ld. c/w Change Over Regulator
Washer/Dryer Prep Package
Waster Termination – Single Point
Water Heater – 10 gal. 120 Volt/LP Fast Recovery D.S.I.
Water Pump – Variable Flow Control
Water Tank – Located in Heater Tank Enclosure w/ 2″ Fill & Drain
16″ Aluminum Wheels
Twin Beds w/Shirt Closets (2 – 39″ x 80″ Innerspring Mattress)
Satellite Dish
Satellite Radio
Insulated Roof Vent & Skylight Covers
Battery – RV Battery
Generator – Onan LP 4KW Microlite – LP
Solar Panel
Central Vacuum (with Dust Pan)
Washer/Dryer (Vented)
Factory PDI (Includes One RV Battery)
